Beschreibung

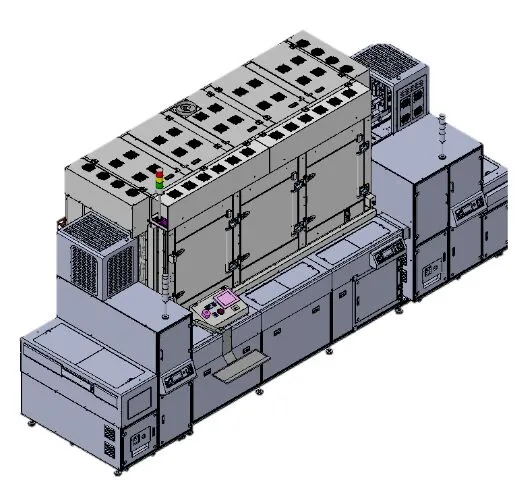

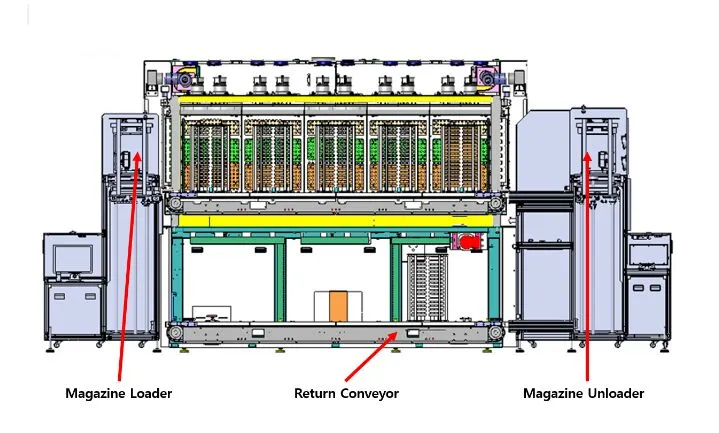

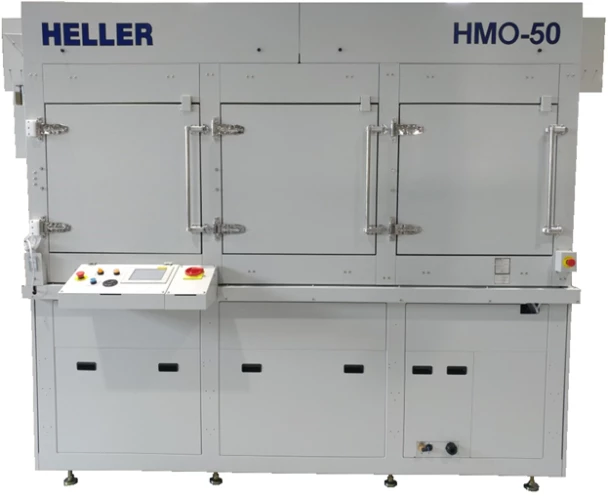

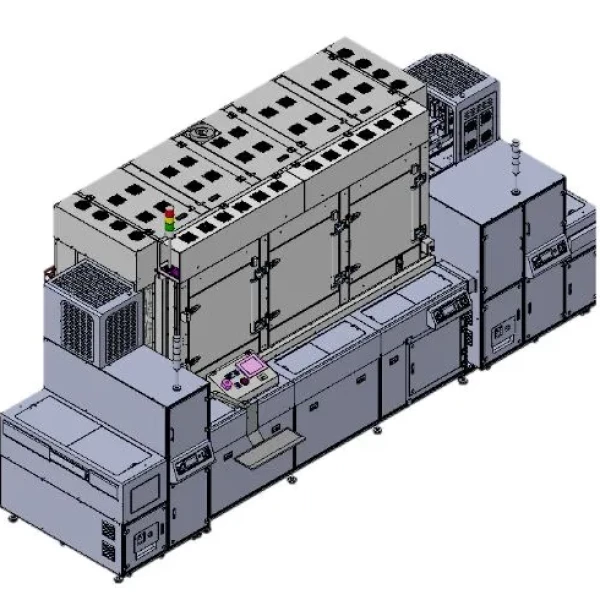

A horizontal in-line magazine curing oven with a magazine loader and unloader, and a magazine return conveyor system.
Anlagenmerkmale
- Oven Size (mm): 3,300[W] x 1,650[D] x 2,500[H]
- Loader (mm): 1,050[W] x 1,500[D] x 2,100[H]
- Unloader (mm): 1,400[W] x 1,500[D] x 2,100[H]
- Bypass (mm): 3,000[W] x 500[D] x 950[H]
- Total Size with Loaders and Bypass (mm): 5,400[W] x 2,000[D] x 2,500[H]
- Max. Operating Temp: 150⁰ C
- Temperature Uniformity (on product): ±5⁰ C
