Beschreibung

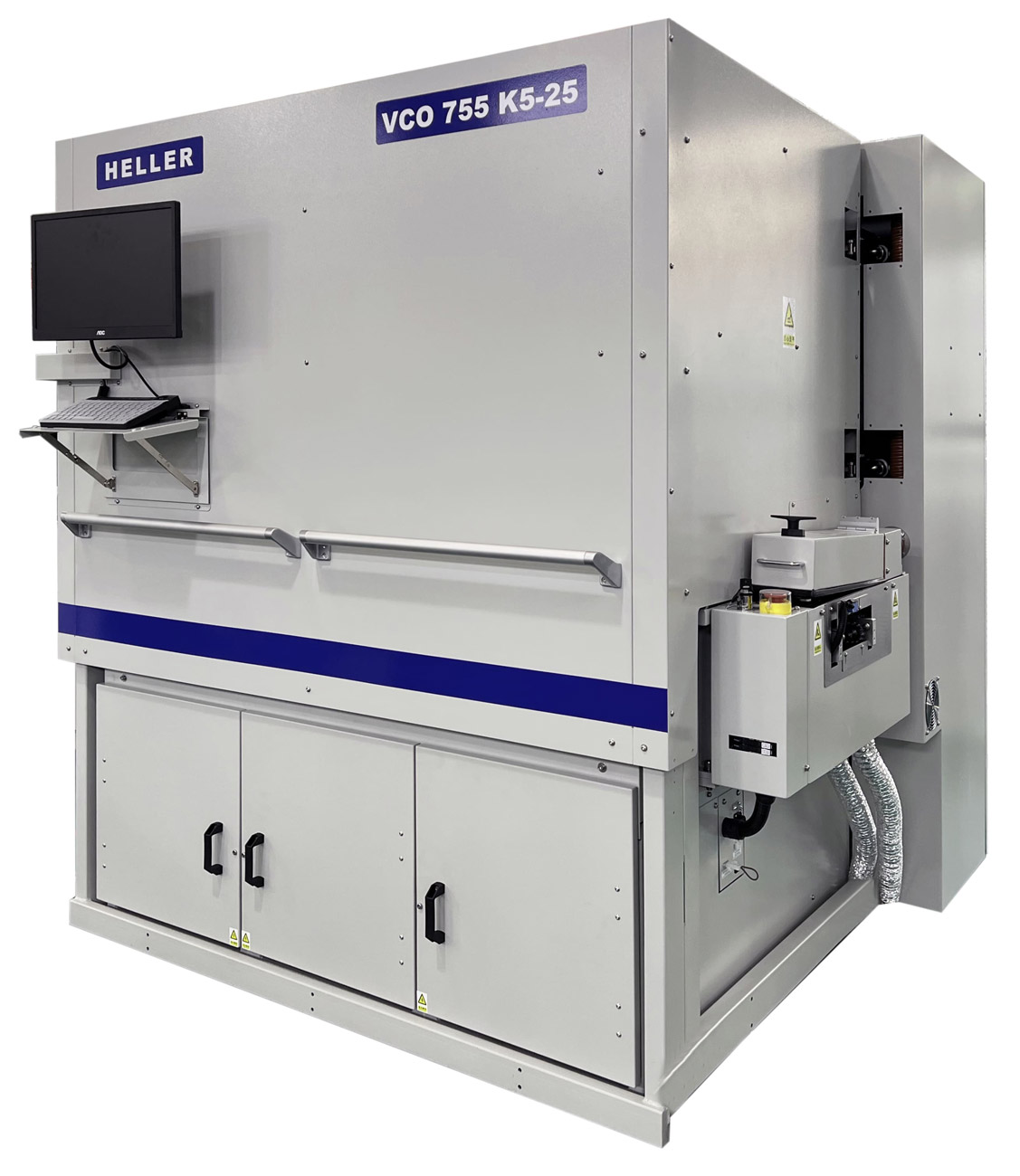

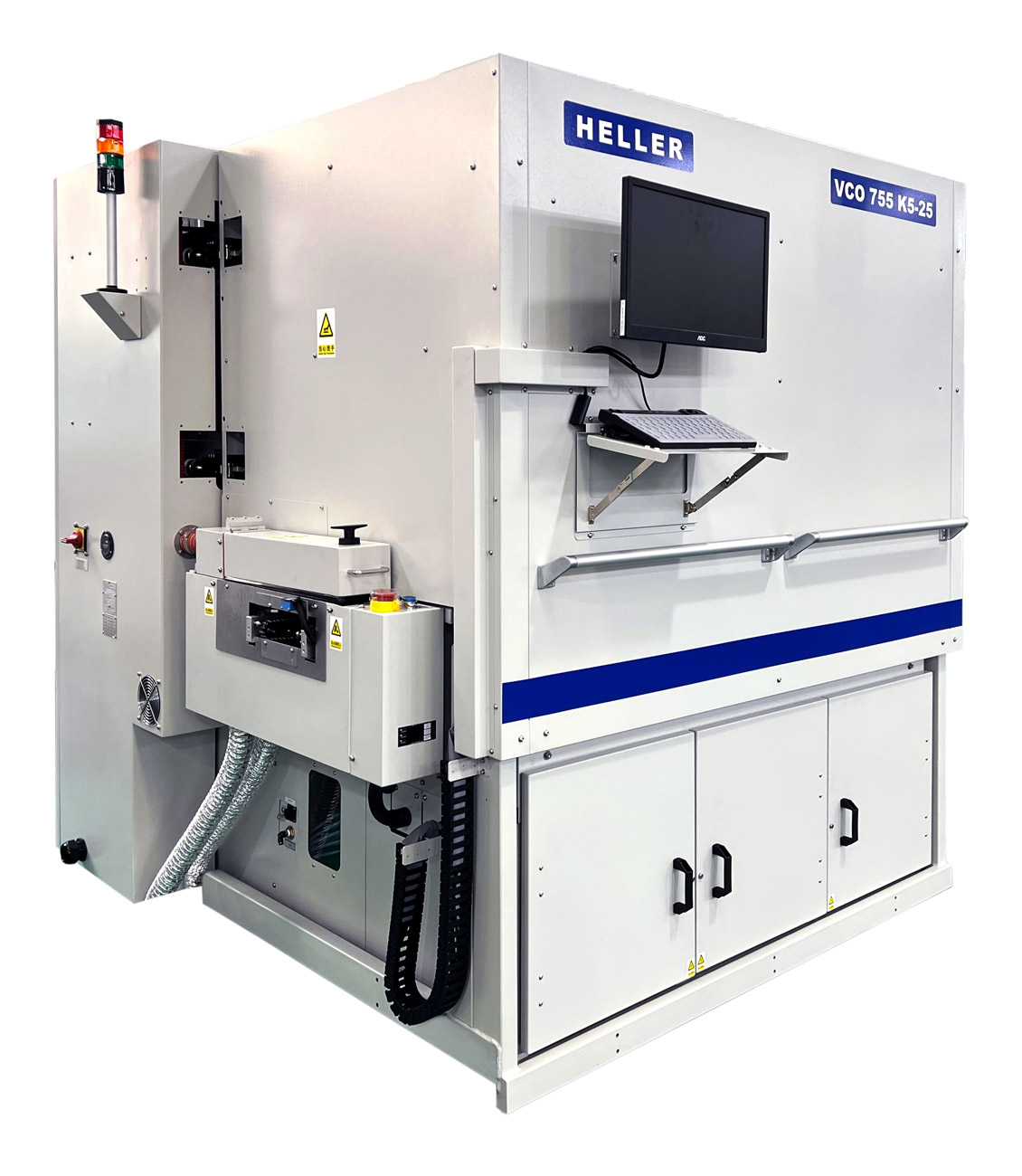

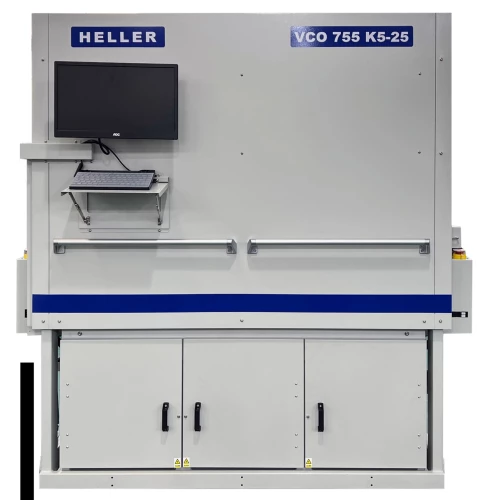

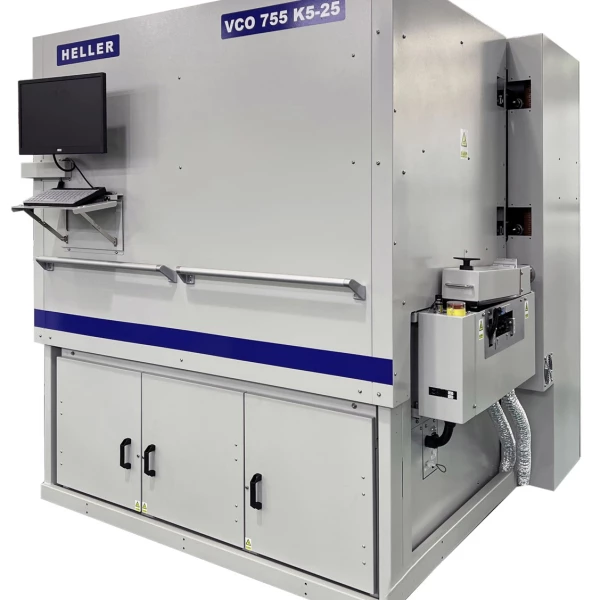

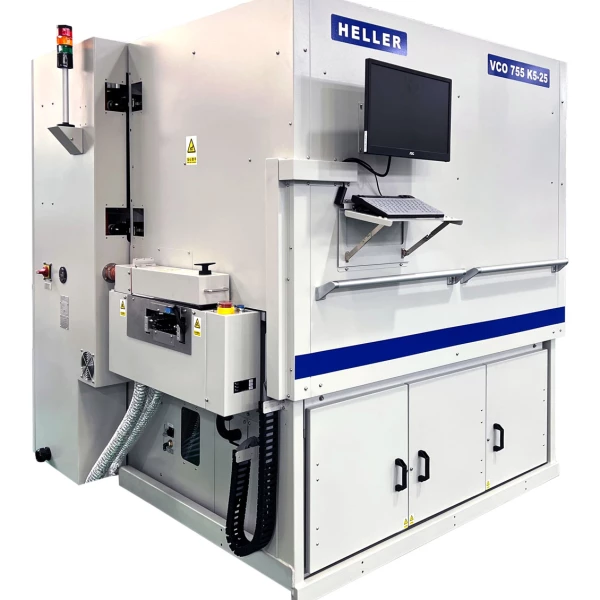

A vertical format mini curing oven with optional cleanroom capability. This oven requires only six feet of floor space and can provide cure cycles as long as four hours. A versatile curing oven with configurations available for various pallet sizes.
Technische Daten
| VCO755 K3/K5 | VCO755 K3/K5-19 | VCO755 K3/K5-38 | |
| # Shelves | 54 up / 54 down | 36 up / 36 down | 18 up / 18 down |
| Shelf Pitch (mm) | 12.7 | 19.05 | 38.1 |
| Max Board Capacity | 108 | 72 | 36 |
| Max Board Size LxWxH (mm) | 292 x 120 x 9 | 292 x 120 x 14 | 240 x 180 x 30 |
Anlagenmerkmale
- Oven Size:
- 755 K3- 1900 (L) x 1620 (W) x 2000 (H)
- 755 K5- 1900 (L) x 1620 (W) x 2400 (H)
- 4 Heated Zones
- Min. Cycle Time: 12 sec
- Cure Time: Up to Hours
- Max Zone Temperature Set Point: 120°C
- Cleanroom Capability:
- 755 K3 – No Cleanroom
- 755 K5– Cleanroom Option
- Dual lane and high throughput configurations available
