Beschreibung

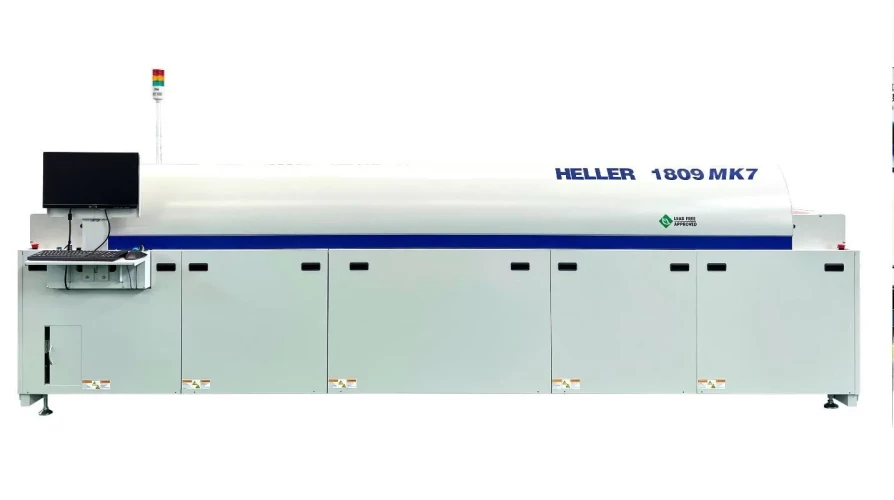

The 1809 MK7 is a reflow oven with 9 heated zones and conveyor speeds of up to 1.88m/min suitable for medium and high volume applications. The 1809 offers reduced nitrogen and electrical consumption with it’s advanced energy management system, advanced flux management options, and the lowest delta T’s.
Technische Daten
| Oven Length | 465cm (183”) |
| Process Gas Options | Air, Nitrogen |
| Heated Zones | Convection: 9 Top / 9 Bottom |
| Heated Length | 260cm |
| Cool Zones | 2 Top (Bottom Option) |
| Max Working Temperature | Standard: 350°C (Option: 400°C) |
| Maximum PCB Width | 55.9cm (22”) |
| Cleanroom Option | Down to Class 1000 |
Anlagenmerkmale
- Built-in Thermal Monitoring
- Nitrogen Capable to < 100 ppm
- Energy Management System
- Virtually No Maintenance
- 10” Wide Heater Modules
