Beschreibung

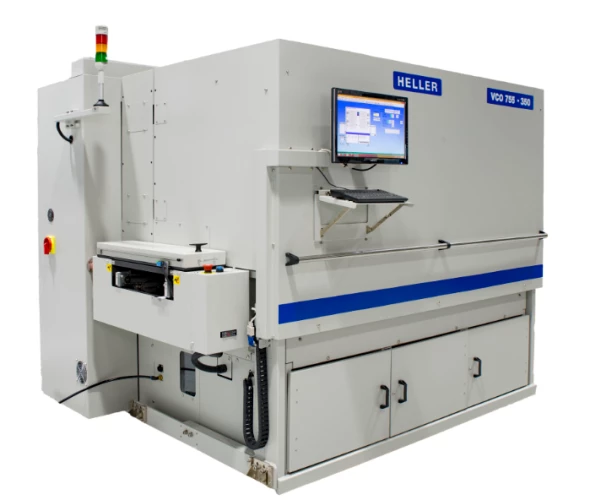

Vertical curing oven with optional cleanroom capability able to handle boards or pallets up to 350mm x 350mm in size.
Technische Daten
VCO755 K3/K5 | VCO755 K3/K5-19 | VCO755 K3/K5-38 | |
# Shelves | 54 up / 54 down | 36 up / 36 down | 18 up / 18 down |
Shelf Pitch (mm) | 12.7 | 19.05 | 38.1 |
Max Board Capacity | 108 | 72 | 36 |
Max Board Size LxWxH (mm) | 292 x 120 x 9 | 292 x 120 x 14 | 240 x 180 x 30 |
Anlagenmerkmale
- Oven Size (mm): 2500 (L) x 1800m (W) x 2000 (H)
- 4 Heated Zones
- Shelf Pitch: 31.75mm
- 36 Board Capacity (18 Up + 18 Down)
- Max Board Size (mm): 350 (L) x 350 (W) x 26 (H)
- Min Board Width: 90mm
- Cycle Time: 12 sec
- Cure Time: Up to Hours
- Max Zone Temperature Set Point: 180°C
